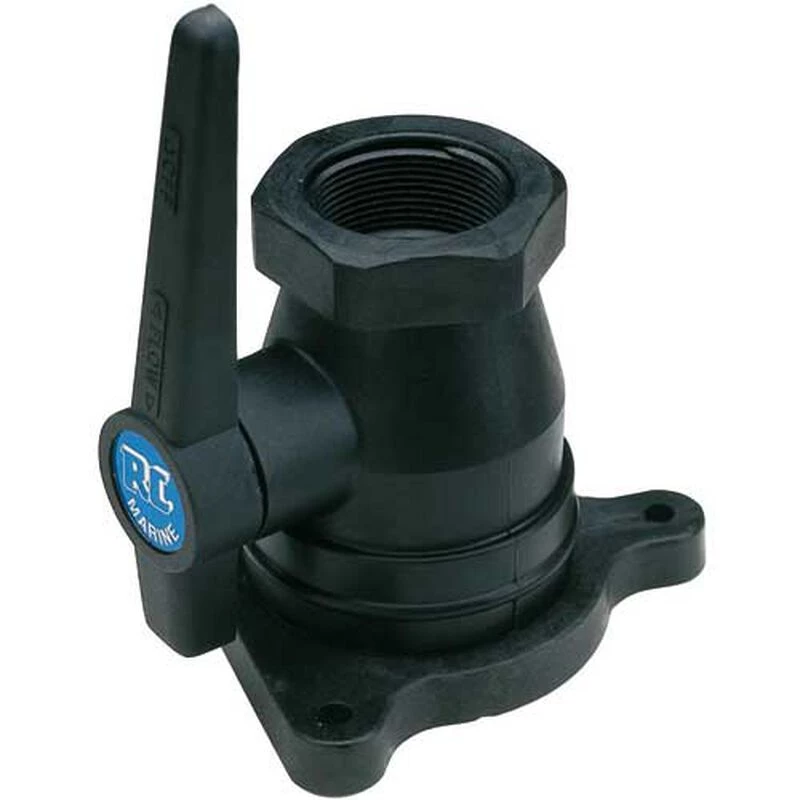

FORESPAR Marelon® Flanged Seacocks

Cost-effective, corrosion-resistant replacements for older style marine seacocks.

Molded from lightweight, high-strength Marelon, these Flanged Seacocks are highly resistant to corrosion, UV degradation and abrasion. Their NPS parallel threads can be sealed with Teflon® tape or plumber’s putty. Any marine-grade sealant or bedding compound can be used as you would with bronze fittings. In fact, Marelon and bronze fittings can be fitted together as long as you are careful not to cross thread. Marelon is UV stabilized and will not deteriorate in sunlight. Exceed Marine UL and ABYC standards.

Marelon Flanged Seacocks feature female NPS threads on each end. Threads are parallel “NPS,” which stands for “Nominal Pipe Size.”

Key Features

• Marelon marine-grade polymer
• Corrosion and abrasion resistant
• Zero electrolysis
• High tensil strength
• UV stabilized and won’t deteriorate in sunlight
• -40ºF to 176ºF (-40ºC to 80ºC) operating temperature range
• Use above- or below-the-waterline
• Can be combined with bronze fittings
• Exceeds Marine UL and ABYC standards

Installation and Specification Chart

Model	NPS Thread	Height	Height w/Handle	Base
171199	3/4″	3″	4″	3″
171207	1 1/2″	5″	8″	6″
