GROCO Bronze Full-Flow Safety Seacocks

These seacocks will enable your engine to function as a bilge pump in an emergency.

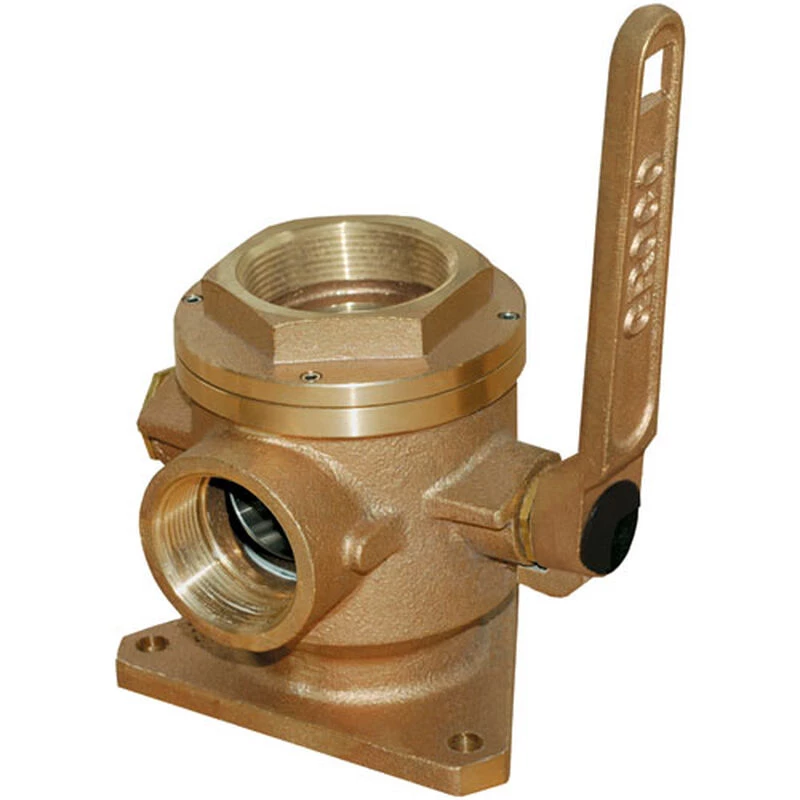

Groco’s Bronze Full-Flow Safety Seacocks feature an NPT-threaded side port for permanent installation of an in-line ball valve or other threaded component. Enables engine to function as a bilge pump in an emergency. All-bronze castings with #316 stainless steel ball and stem, PTFE seats and seals. Handle may be relocated to either side of the valve body and includes a square hole to accept a standard ratchet (helps access hard-to-reach valves and ease actuation of difficult-to-operate valves). The tri-flange base has a bolt pattern that matches most popular brands to make retrofits easier.

The top and side fittings are NPT (tapered thread) and bottom fitting is NPS (straight thread).

Key Features

• Full pipe-size flow
• C84400 bronze construction for resistance to corrosion
• #316 stainless steel ball and stem
• PTFE seats and seals
• Two driver ports permit handle relocation
• NPT threaded side port accepts SSCV or any NPT threaded accessory
• Handle has square hole that accepts standard ratchet
• Serviceable while installed
• Base has bonding attachment

Model	Inlet (NPS)	Discharge (NPT)	Side (NPT)
285793	1 1/4″	1 1/4″	1″
285785	1 1/2″	1 1/2″	1 1/4″
285777	2″	2″	1 1/2″
