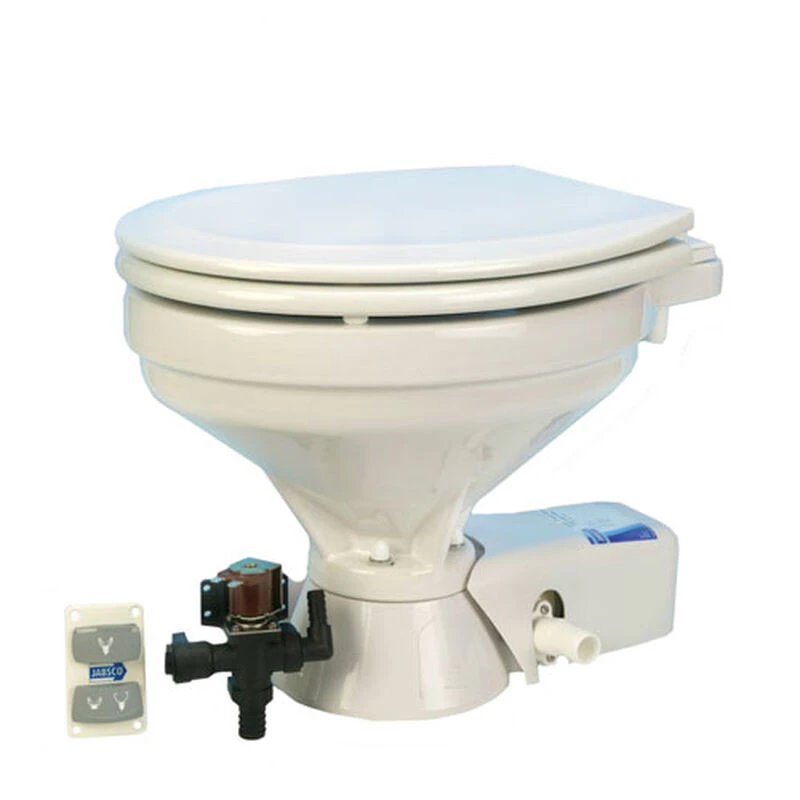

JABSCO Quiet-Flush Electric Toilets

These single-button flush marine toilets offer outstanding convenience.

Quiet Flush heads feature a very quiet flush cycle just like your household toilet. Two models are offered: Freshwater flush 37045-series models can be plumbed to any pressurized water system that can provide a 31/2 gpm flow rate. These models include a water control solenoid valve with anti-siphon breaker to prevent contamination of potable water supply. They also include a 6′ hose for connection to the remote mounted solenoid valve and a siphon-breaker assembly. Raw water flush 37245-series models draw water from an external source for flushing. Both models include a single button flush actuator with a dual-function water level control switch and both incorporate a powerful waste water evacuation pump with built-in macerator.

Key Features

• Very quiet flush
• Single button flush actuator, with dual-function water level control switch
• High-capacity waste macerator and waste discharge pump
• Compact or household size available
• Choice of raw water or freshwater flush

Specifications

• Type: Electric
• Material: White vitreous china bowl; Baked enamel seat & cover
• Port Sizes: 3/4″ Hose Barb intake, 1″ Hose Barb discharge
• Dimensions: 13 3/4″H x 14″W x 17 1/2″D
• Draw: 10A @12V DC, 5A @ 24V DC
• Water Consumption: 1-2 Quarts (Litres) per Flush
• Warranty: One year

For detailed dimensions and installation of the freshwater flush models, see the 37045-Series Owner’s Manual.

For detailed dimensions and installation of the raw water flush models, see the 37245-Series Owner’s Manual.
