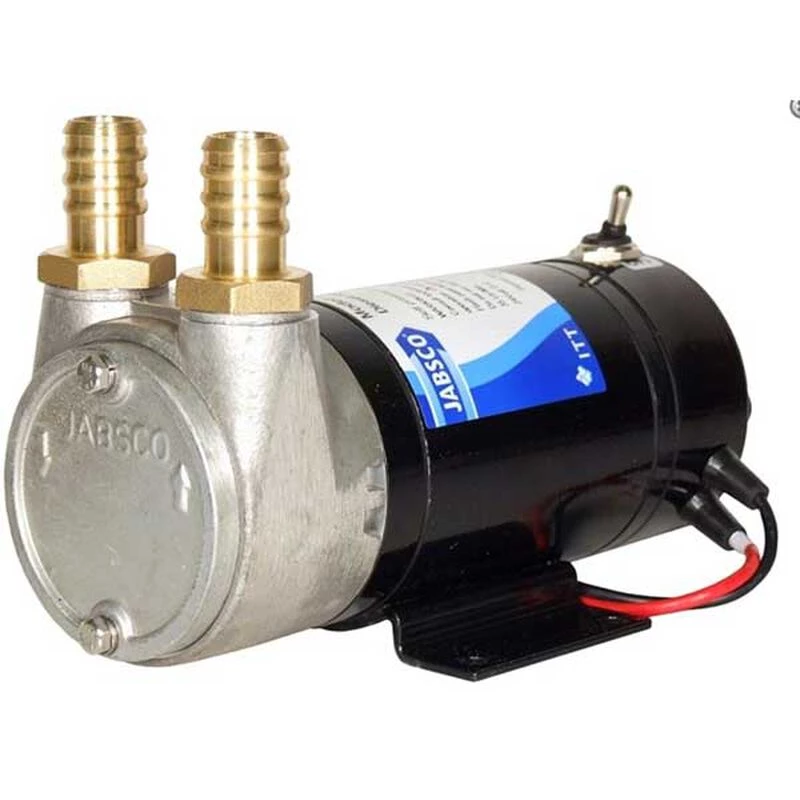

JABSCO Self-priming Diesel Transfer Pump, 12V

A small pump capable of moving large quantities of diesel and oil

Transfer pumps make short work of moving diesel or hydraulic oil from a drum to a tank or reservoir. This Jabsco 12V transfer pump packs a lot of power into a small package. Ideally suited for tanks up to 200 gallons this self-priming pump is designed to function in all sorts of conditions: from -22°F in Alaska to 104°F in Baja. PTFE filled Ryton™ vanes are suited for exposure to petroleum products. The aluminum body features two mounting feet for permanent installations. An integrated switch, fuse and barbed fittings for 3/4″ hose make set up quick and easy. An IP55 rating gives users the confidence that this pump will standup to moderate exposure to dust and spray.

Key Features

• Self-priming up to 9′ and 13′ of head
• Integrated switch and included fuse makes set and use quick and easy
• IP55 rating allows pump to installed in exposed location
• Functions in -22°F to 104°F
• Not rated for continuous use
• Ideal for tanks less than 200 gallons
• One-year limited warranty

Specifications

• Use: Diesel, Kerosene, Paraffin and Hydraulic oil transfer
• Pump Type: Rotary sliding vane
• Voltage: 12V
• Amperage: 20A DC
• Refueling Capacity: 35 litres/minute (9.5 U.S.GPM)
• Port Size: 3/4″ barbed
• Lift: 9′
• Head: 19′
• Height: 5″
• Width: 4″
• Length: 7 5/8″
