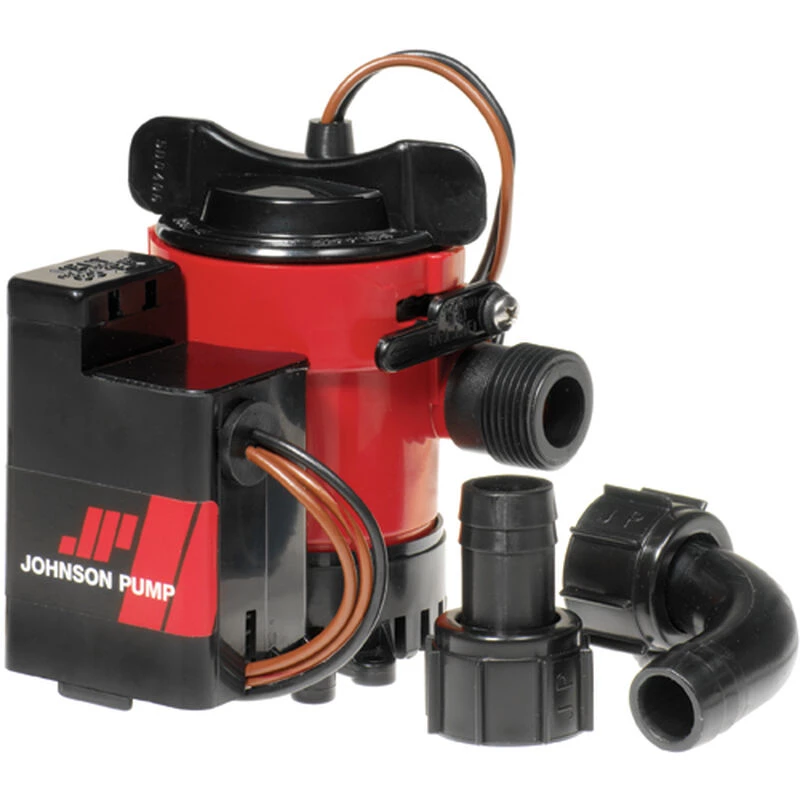

JOHNSON PUMP Automatic Bilge Pump

These pumps include an electro-magnetic float switch that won’t jam on debris.

For automatic or manual operation, these dependable pumps include a sealed electro-magnetic float switch that won’t jam on debris. Each comes with a removable check valve plus straight and 90° Dura-ports for easy hand installation and the elimination of stress cracks caused by over-tightened clamps. Should cleaning become necessary, the convenient wing nut design of the motor/impeller cartridge permits easy removal by hand for cleaning no tools required!

Key Features

• Automatic or manual operation
• Electro-magnetic float switch won’t jam on debris
• Straight and 90° Dura-ports allow easy hand installation
• Removable check valve prevents water back flow
• Wing nut design allows removal of motor assembly for easy cleaning

Specifications

• Type: Centrifugal cartridge bilge pump with electro-magnetic float switch
• Port: 3/4″
• Dimensions: 4 1/2″H x 4″dia.
• Built-In Switch: Yes; Sealed electo-magnetic float
• Material: Thermo-plastic body, 316 stainless steel shaft
• Warranty: Three years

Capacity	Amperage
500gph	2.5A @ 12V DC
750gph	3.0A @ 12V DC
1000gph	3.2A @ 12V DC

More Information

For detailed installation and wiring instructions see the data sheet for these pumps.
