WHALE PUMPS Titan Bilge Pumps

Manual Diaphragm pumps that rotate to increase installation options

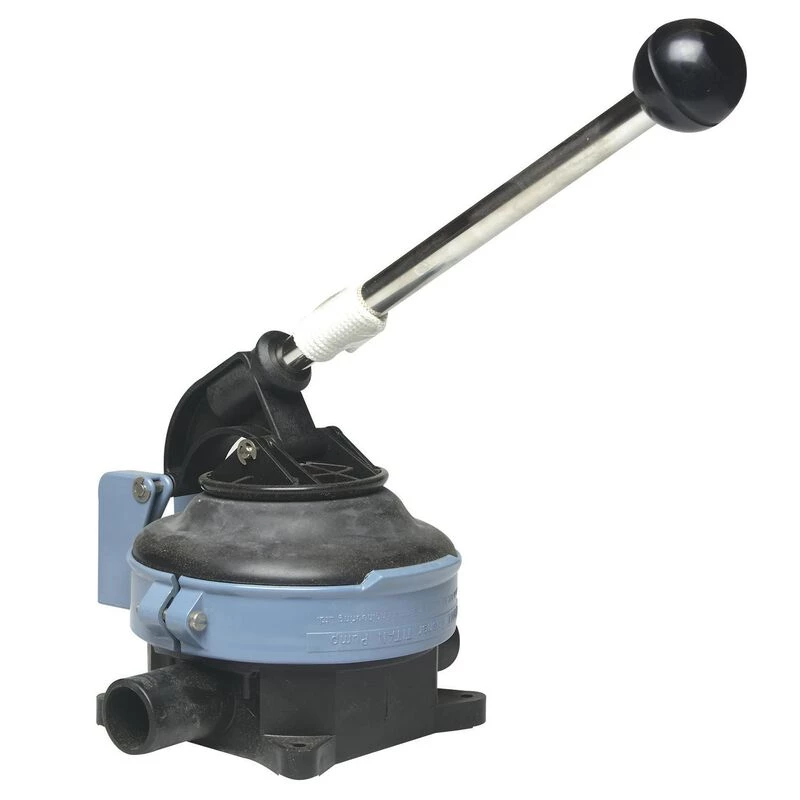

Whale manual pumps have been used by boaters for decades. These light weight self-priming pumps feature a glass filled polypropylene body and an Acetal (Delrin®) clamp ring for added strength. The Neoprene diaphragm and valves provide excellent service life; nitrile rebuild kits are available and sold separately. A removable stainless steel lever gives users the confidence that nothing is wasted in their effort to clear the bilge. A unique feature to the Gusher Titan is the ability for the lever mechanism to rotate. By loosening the clamp ring, the pump head can be rotated to allow users to fine tune the path of the lever. The Titan is offered in two configurations. A surface mounted pump that is ideal for open area applications or mounted to a plank as a portable pump. The Thru-Deck model is great for applications that require the operation from the cockpit or installed in a settee bulkhead.

Key Features

• Light weight and self priming
• Pump head can be rotated to fine tune pump handle path
• Removable stainless steel handle

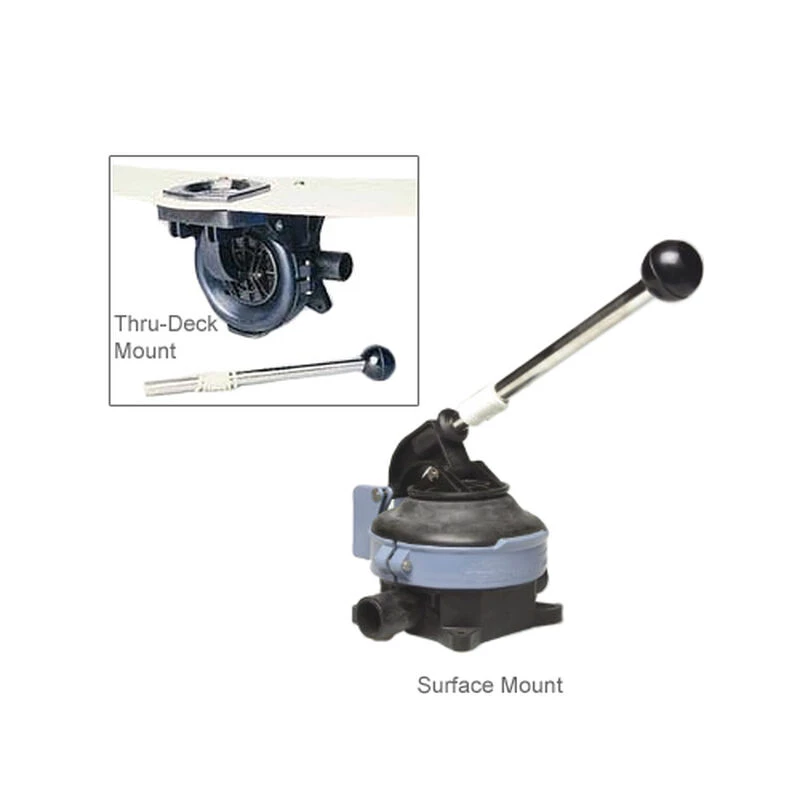

• Two installation options; surface and thru-deck
• Clamp ring provides easy access for pump service and repair
• Five-year warranty

Specification	Surface Mount Pump	Thru Deck Pump
Pump Type	Diaphragm	Diaphragm
Capacity (@ 70 strokes/min)	28 GPM	28 GPM
Port Size	1 1/2″	1 1/2″
Lift	13′ 6″	13′ 6″
Head	13′ 6″	13′ 6″
Height	17 1/4″ (incl handle)	11 3/8″ Handle above deck, (7 9/16″ below)
Length	9 1/4″	9 1/4″
